상세 정보 |
|||
| 상표: | 슈나이더 | 원산지 국가: | 프랑스 |
|---|---|---|---|
| 모델: | 140cpu43412 | 시간을 전달하십시오: | 3-5 근무일 |
| 가격: | contact us | 보증: | 1 년 |
| 품질: | 오리지널 패키지를 밀봉하십시오 | 배송 기간: | DHL /FedEx /UPS /TNT |
| 강조하다: | Schneider 140CPU43412 processor module,Modicon Quantum PLC 80486 CPU,66 MHz mid-range processor module |
||
제품 설명

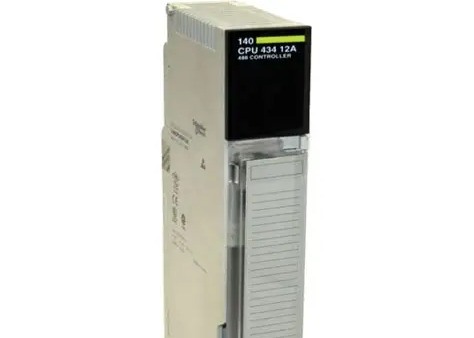

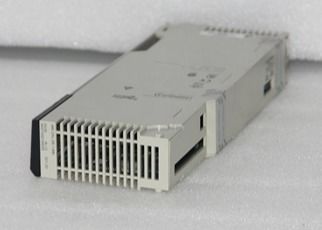

Schneider 140CPU43412 Mid-Range Processor Module 80486 CPU 66 MHz
Quick Details:
Overview
The 140CPU43412, developed by Schneider Electric, is a mid-tier processor module belonging to the Modicon Quantum product line. Engineered specifically for high-performance control scenarios, it is built around an 80486 central processing unit (CPU) operating at a clock speed of 66 MHz. This module offers compatibility with established, legacy programming platforms, including ProWORX 32 and Concept. It is particularly well-suited for distributed control systems (DCS) that demand reliable communication capabilities, moderate memory capacity, and flexible integration with input/output (I/O) devices.
Product Specifications
Processor Type: 80486 CPU integrated with a mathematical coprocessor
Clock Frequency: 66 MHz
Internal RAM: 896 kilobytes (kB)
Instruction Execution Time (for LL984 instruction set): Ranges from 0.1 to 0.5 milliseconds (ms)
Watchdog Timer: Fixed at 250 ms
Clock Drift: ±8 seconds per day
Supported Programming Software: ProWORX 32 and Concept
I/O Capacity:
Local I/O: 64 input words and 64 output words
Remote I/O: 64 input words and 64 output words
Distributed I/O: 500 input words and 500 output words per individual network
Maximum Configuration Limits:
Up to 31 remote drops
A maximum of 2 remote networks and 3 distributed networks
Communication Ports:
1 Modbus Plus port (equipped with a DB9 female connector)
2 Modbus RS232 ports (each fitted with a DB9 female connector)
Optional Communication Modules: Supports up to 6 optional modules, including NOM, NOE, CR, and NMS models
Battery: Lithium-ion type with a 1.2 ampere-hour (Ah) capacity and a 10-year service life
Bus Current Requirement: 1250 milliamperes (mA)
Memory Protection: Implemented via a key switch and a slide switch
Status Indicators: LED lights for displaying operational status, including RUN, READY, ERROR A/B, BAT LOW, and COMM activity
Dimensions & Weight
Height: 4.4 centimeters (cm)
Width: 16.5 cm
Length: 31.0 cm
Net Weight (module alone): 0.85 kilograms (kg)
Packaging Weight: 609 grams (g)
Installation Notes
Mount the CPU module within a Modicon Quantum rack, ensuring it is installed in the appropriate slot as per configuration requirements.
Set up communication parameters using the slide switch and the rotary address switches located on the rear of the module.
Establish connections for the Modbus and Modbus Plus ports using standard DB9 cables.
Guarantee proper grounding and shielding of the module to meet electromagnetic compatibility (EMC) standards.
Utilize only Schneider Electric-approved software packages for programming the module and performing diagnostic tasks.
Introduce for Quantum PLC module
Quantum PLC module USES modern large-scale integrated circuit technology, after strict production process manufacturing, the internal circuit adopted advanced anti-interference technology, so it has very high reliability. Quantum PLC also with hardware fault self-detection function, failure can be timely alarm information. And can be programmed in the Concept of peripheral components of the fault self-diagnosis program, so that the system in addition to THE PLC circuit and equipment also obtain fault self-diagnosis protection, so that the whole system has high reliability. All modules can be plugged and plugged on, no need to stop the system, reduce the workload, easy to maintain. LED status indicator shows the CPU and its I/O template channel status visually, which provides great convenience for quick maintenance.
Quantum PLC has complete supporting facilities, complete functions and strong applicability. The important systems such as river water intake and condensate fine treatment adopt double machine heat backup, redundant power supply, redundant remote I/O, plus double Ethernet to ensure the safe and continuous operation of the system. Especially the advanced two - machine hot - standby system has simple configuration and convenient operation. Through two sets of modules with identical configuration, the form of primary and secondary is formed. Under normal state, the host CPU is responsible for processing program operation, I/O communication, update the status and data of the standby CPU through the hot standby module, and the standby machine monitors the running status of the host. When the host machine fails, the standby machine will switch immediately and become the host machine to replace the processing work of the failed machine. Moreover, the switching time is short and will not exceed a scanning cycle of PLC, so the logic operation will not be affected.
Our products are widely used in CNC machinery, metallurgy, petroleum and natural gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, transmission and distribution industries.
