| 원래 장소: | 프랑스 |
| 브랜드 이름: | Schneider |
| 모델 번호: | TSXAEY420 |

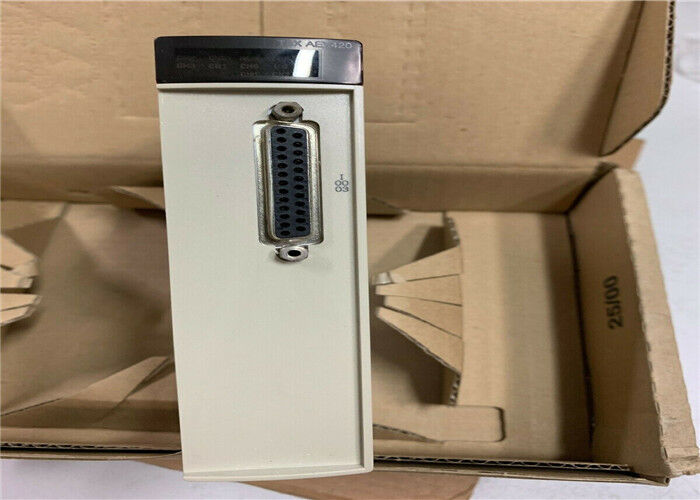

Schneider Electric Modicon X80 series Analog input module TSXAEY420
Description
TSXAEY420 is a Modicon X80 series analog input module produced by Schneider Electric. It has 4 isolated input channels and supports 0-20mA, 4-20mA current signals as well as ±10V voltage signals. This module is specifically designed for industrial automation systems and is suitable for scenarios requiring high-precision analog signal acquisition. Currently, it is available in stock on multiple e-commerce platforms and suppliers, with same-day shipping and a two-year warranty. Its reliability and compatibility make it widely used in PLC control systems.
Specifications
| Range of Product | Modicon Premium Automation platform |
|---|---|
| Product or Component Type | Analog input module |
| Input level | High level |
| Analogue input number | 4 |
| Analogue input type | Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
| Analog/digital conversion | 16 bits |
| Nominal read cycle time | 1 ms |
|---|---|
| Measurement error | 0.1 % of full scale +/- 10 V 25 °C 0.1 % of full scale 0...10 V 25 °C 0.2 % of full scale +/- 10 V 0...60 °C 0.2 % of full scale 0...10 V 0...60 °C 0.2 % of full scale 0...20 mA 25 °C 0.2 % of full scale 0...5 V 25 °C 0.2 % of full scale 1...5 V 25 °C 0.2 % of full scale 4...20 mA 25 °C 0.4 % of full scale 0...20 mA 0...60 °C 0.4 % of full scale 0...5 V 0...60 °C 0.4 % of full scale 1...5 V 0...60 °C 0.4 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Isolation between channels | Common point |
| Common mode between channels | None |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm |
| Electrical connection | 1 connector SUB-D 25 |
| Overcurrent | -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 500 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.73 lb(US) (0.33 kg) |
| Standards | IEC 1131 |
|---|---|
| Product Certifications | BV LR ABS RINA RMRS GL DNV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
| Category | US1PC2222558 |
|---|---|
| Discount Schedule | PC22 |
| GTIN | 3389110876338 |
| Returnability | No |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 15.3 oz (435.0 g) |
| Warranty (in months) | 18 |
|---|
